In today's era of rapid development of medical technology, the rigid optical endoscope, as an important diagnostic and treatment tool, plays an indispensable role. Among them, the rigid optical endoscope lenses are just like the "eyes" of this tool, providing doctors with a clear field of vision with their excellent performance and precise imaging, thus facilitating medical diagnosis and treatment.

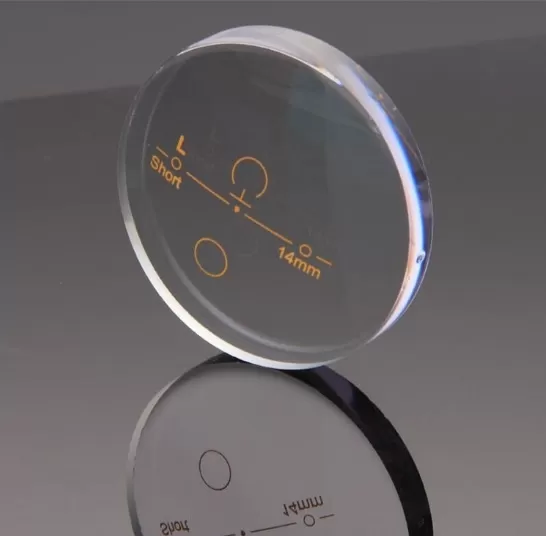

Rigid optical endoscope lenses are one of the core components of rigid optical endoscopes. They are usually made of high-quality optical glass or sapphire and other materials, possessing high transparency, high refractive index and good wear resistance. These lenses undergo precise processing and coating treatment, enabling them to effectively transmit light and provide clear and sharp images.
The rigid optical endoscope mainly consists of an objective lens, an image transfer system and an eyepiece, and the lenses are distributed in these different parts. The objective lens is responsible for collecting the light of the target object, focusing it and transmitting it to the image transfer system; the lenses in the image transfer system reflect and refract the image transmitted from the objective lens for multiple times to ensure the correct direction and size of the image; the eyepiece magnifies the image transmitted from the image transfer system for doctors to observe.
Glass Materials: High-purity optical glass is usually adopted, which has excellent optical properties such as high refractive index and low dispersion, and can effectively reduce light refraction and scattering to ensure the clarity and color reproduction of the image. For example, the borosilicate glass used in some endoscope lenses has good chemical stability and a low thermal expansion coefficient, and can maintain stable optical properties within a wide temperature range.
Quartz Materials: Quartz lenses have higher hardness and wear resistance as well as better high-temperature resistance, and are suitable for some special application scenarios with extremely high requirements for lens performance, such as in medical surgeries in high-temperature environments or those that require frequent cleaning and disinfection.
Objective Lenses: Located at the front end of the rigid optical endoscope, directly facing the observed object, their function is to collect the light reflected or scattered by the object and focus the light to form a real image of the object. Parameters such as the diameter, focal length and numerical aperture of the objective lens will affect the field of view, resolution and depth of field and other performances of the endoscope. For example, a large-diameter objective lens can collect more light and improve the brightness of the image, but it may lead to an increase in the size of the front end of the endoscope.
Image Transfer Lenses: The main function of the image transfer lenses is to invert and transfer the real image formed by the objective lens so that observers can see an upright image through the eyepiece. A common image transfer lens group consists of multiple lenses. By precisely designing parameters such as the curvature, thickness and spacing of the lenses, functions such as high-quality image transfer and distortion correction can be achieved. In some new types of rigid optical endoscopes, special image transfer lens designs, such as cylindrical lenses or aspheric lenses, are adopted to further improve image quality and reduce the size of the endoscope.
Eyepiece Lenses: The eyepiece lenses are located at the rear end of the rigid optical endoscope, close to the observer's eyes. Their function is to magnify the image transferred by the image transfer lenses again so that observers can observe the details of the object more clearly. Parameters such as the magnification and field angle of the eyepiece lenses will affect the observer's visual experience and observation range.
In order to improve the performance of rigid optical endoscope lenses, one or more layers of optical thin films are usually coated on the lens surface. Common coating types include:
Anti-reflection film: It can effectively reduce the reflected light on the lens surface and improve the transmittance of light, thereby increasing the contrast and brightness of the image. Anti-reflection film is generally made of multiple layers of dielectric materials with different refractive indices stacked alternately. By precisely controlling the thickness and refractive index of each layer of film, the reflected light interferes and destructs between the film layers, thereby achieving the purpose of reducing the reflectivity.
Anti-reflection Coatings: The function of anti-reflection coatings is similar to that of anti-reflection coatings, which is also to improve the light transmittance of the lenses. The difference lies in that anti-reflection coatings are usually optimized for specific wavelengths of light. For example, they have the best anti-reflection effect at a certain wavelength or wavelength range within the visible light range, so that the imaging quality of the endoscope at this wavelength can be significantly improved.
Waterproof and Anti-fouling Coatings: Waterproof and anti-fouling coatings can make the lens surface have good hydrophobicity and oleophobicity, prevent liquids such as water, blood and tissue fluid from adhering and condensing on the lens surface, and prevent pollutants such as dust and grease from contaminating the lens. This is not only conducive to keeping the lens clean, reducing the number of cleanings, but also can improve the service life and reliability of the endoscope.
Grinding and Polishing: This is the basic process for manufacturing rigid optical endoscope lenses. By using high-precision grinding equipment and polishing materials, the lens blanks are processed into optical lenses with precise curvatures and surface accuracies. The precision of grinding and polishing directly affects the optical performance and imaging quality of the lenses. For example, a slight difference in surface roughness may lead to an increase in light scattering and a reduction in image clarity.
Coating Processes: Coating processes usually adopt methods such as physical vapor deposition (PVD) or chemical vapor deposition (CVD) to deposit one or more layers of optical thin films on the lens surface. These methods can precisely control the thickness, refractive index and uniformity of the film layers to meet different optical performance requirements. For example, in the PVD process, the coating materials are converted into gaseous atoms or molecules through evaporation or sputtering and then deposited on the lens surface to form thin films.
High-precision Assembly: The assembly of rigid optical endoscope lenses requires extremely high precision and stability to ensure the accurate relative positions and angles among the lenses. In the assembly process, professional assembly equipment, tooling fixtures and precise measuring instruments are usually used to position, calibrate and fix the lenses. Any tiny assembly error may lead to problems such as image distortion, aberration or a decline in resolution.
The high transparency and high refractive index of rigid endoscope optics lenses enable them to transmit more light, thus providing clearer and brighter images. This is crucial for doctors to accurately observe the lesion sites and judge the disease conditions.
For example, in minimally invasive surgeries, doctors need to observe the tissue structures inside patients' bodies through endoscopes. If the imaging quality of the lenses is not high, it may lead to doctors' misjudgment of the disease conditions and increase the surgical risks.
The high-precision processing and coating treatment of rigid optical endoscope lenses can ensure the accuracy and authenticity of the images. Doctors can make precise diagnoses of the lesion sites by observing the endoscope images and formulate more scientific and reasonable treatment plans.
For example, in otolaryngology surgeries, doctors can clearly observe the structures of patients' ears, noses and throats by using rigid optical endoscope lenses, accurately locate the lesion sites and perform fine surgical operations.
The wear resistance and durability of rigid optical endoscope lenses enable them to maintain good performance during the surgical process. This can not only reduce the surgical time and improve the surgical efficiency, but also reduce the surgical risks and ensure the safety of patients.
In addition, some rigid optical endoscope lenses also have functions such as anti-fogging and waterproofing, and can maintain clear imaging in different surgical environments, further improving the surgical safety.
With the continuous progress of science and technology, the materials of rigid optical endoscope lenses are also constantly innovating. Besides traditional optical glass and sapphire materials, some new materials such as silicon carbide and silicon nitride have also begun to be applied in the manufacturing of endoscope lenses. These new materials have higher hardness, better wear resistance and lower refractive index, and can provide more excellent imaging quality.
Coating technology is one of the important means to improve the performance of rigid optical endoscope lenses. By coating different film layers on the lens surface, the light transmittance, anti-reflection, wear resistance and waterproofing of the lenses can be improved. At present, some advanced coating technologies such as multi-layer coating and nano-coating have been widely applied in the manufacturing of endoscope lenses, further improving the performance of the lenses.
With the development of digital technologies, rigid optical endoscope lenses have also begun to be combined with digital imaging technologies. By integrating micro-cameras and image sensors inside the lenses, the endoscope images can be directly converted into digital signals and transmitted to the display screen for observation and analysis. This digital imaging technology can not only improve the clarity and resolution of the images, but also realize functions such as image storage, transmission and remote consultation, bringing more convenience to medical diagnosis and treatment.
When choosing rigid endoscope lenses, it is necessary to first choose products of well-known brands and with good reputations. These brands usually have rich production experience and advanced technological strength, and can guarantee the quality and performance of the lenses.
Attention should be paid to the parameters of the lenses, such as transparency, refractive index, resolution and field angle. These parameters directly affect the imaging quality of the lenses, and should be selected according to actual needs.
High-quality after-sales services are also one of the important factors in choosing rigid optical endoscope lenses. During the use process, if there are problems with the lenses, being able to get timely repair and replacement services from the manufacturers can ensure the smooth progress of medical work.
As the precision eyes in the medical field, rigid optical endoscope lenses play a vital role in medical diagnosis and treatment. With the continuous progress of science and technology, the technologies of rigid optical endoscope lenses are also constantly innovating and developing, providing stronger support for the development of the medical cause. When choosing rigid optical endoscope lenses, we should pay attention to factors such as brands, parameters and after-sales services, choose high-quality products and provide guarantees for the smooth progress of medical work.
